OUR PRODUCTS

Unmatched power for GSE & logistic traction vehicles.

Powerful Traction 80v

Tremendous power, more capable than anything that came before

Powerful Traction 48v

Unmatched capacity for improved operations

IP55 Charger

Indoor and outdoor. Fast charging in all conditions & environments

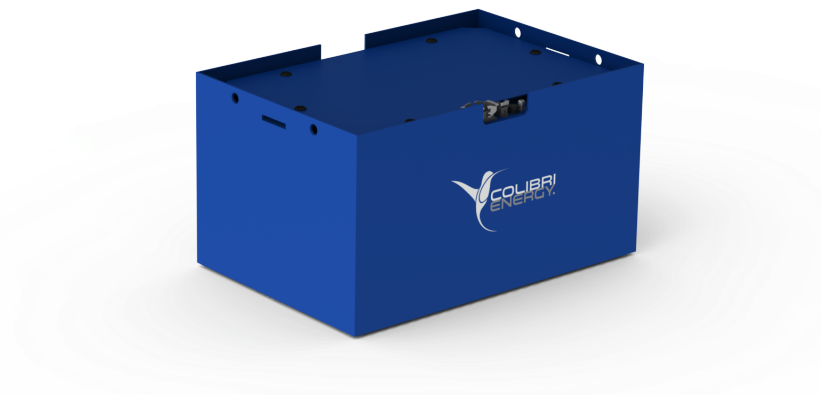

Powerful Traction 80V

Game changer for Airports and Warehouses

With its tremendous power, the Power Traction 80V is a game changer for Airports, Airlines and Ground Handlers.

Available in

  • 275 Ah
  • 400 Ah

Outstanding Reliability

Our product speaks for itself.Over 10,000 op. hours in the harshest conditions.

Incredible Performance

Speed and reliability is important. Colibri delivers more power longer. Heavy loads and slopes are not a problem.

Fleet-Efficiency

Smoother operations & greater savings. Our Traction 80V doesn’t require any service. It will help you reduce costs of operation.

POWERFUL TRACTION

POWERFUL TRACTION PLUS

Nominal Capacity 275 Ah 400 Ah
Nominal Voltage 80 VDC 80 VDC
Max. Voltage 87,5 VDC 87,5 VDC
Min. Voltage 68,5 VDC 68,5 VDC
End-of-charge Voltage 86,9 VDC 86,9 VDC
Recommended charge current 135 A 200 A
Charging curve U/I;CC/CV U/I;CC/CV
End-of-discharge voltage 72 VDC
72 VDC
Continuous discharge current 275 A (1C) 400 A (1C)
Peak discharge current 750 A (1s) / 500A (10s) 750 A (1s) / 500A (10s)
Operating Temperature -20 ℃ to +60 ℃ -20 ℃ to +60 ℃
Charging Temperature 0 ℃ to +60 ℃ 0 ℃ to +60 ℃
Dimension (W x H x D) 1015 mm x 557 mm x 682 mm 1015 mm x 557 mm x 682 mm
Weight, gross ca. 420 kg ca. 500 kg
Protection IP 65 IP 65
Transportation/ Abuse UN 38.3 UN 38.3
Short circuit protection Internal fuse 630A Internal fuse 630A
Temperature protection Integrated Integrated
Over/Under voltage & Overcurrent protection Integrated Integrated

1. State of Charge Display

Knowing exactly how much energy is left in a battery can be tricky. It doesn’t have to be. We provide every Power Traction system with it’s own display so you don’t have to guess anymore. And, if you don’t need the system, send it back to us for re-cycling and re-use.

2. Tracking

Information is power. Power to optimize your business and deliver better service. With Power Traction Tracking, you will always know where your equipment is located, how fast it is driving, the route it has followed during the day, the current state of charge… the list of information available to you is extensive. Ask us how Power Traction Tracking can improve your business performance.

3. Counterweights

All of our Products weigh a fraction of their lead-acid battery cousins. Less weight means your equipment drives further on a charge and experiences less wear and tear on tires, motors and chassis. In a nutshell, less weight reduces maintenance costs and prolongs the life of your equipment. Sometimes, however, our customers need the full drawbar pull of their equipment. We therefore offer a variety of counterweights to meet your drawbar pull and towing capacity needs. Our flexible solution allows you to take control and optimize the ballast in your fleet to balance best fleet economics with fleet load hauling requirements.

4. System Activator

The Power Traction family of products are active systems – Electronics constantly monitor the status of the battery. There are times, however, when the system might need to be stored for an extended period or shipped. Our System Activator will put the Power Traction to sleep allowing you warehouse the system for up to 12 months without charging.

Powerful Traction 48V

Game changer for Airports and Warehouses

Developed for demanding warehouse environments, the Traction 48V delivers the same incredible power as the Traction 80V.
Available in



  • 275 Ah
  • 400 Ah

Outstanding Reliability

Works service free in the harshest conditions

Incredible Performance

Takes on jobs previously reserved for combustion engines

Fleet-Efficiency

No need to ever swap batteries. Reduce equipment and operating costs

POWERFUL TRACTION

POWERFUL TRACTION PLUS

Nominal Capacity 275 Ah 400 Ah
Nominal Voltage 48 VDC 48 VDC
Max. Voltage 53,5 VDC 53,5 VDC
Min. Voltage 41,5 VDC 41,5 VDC
Recommended charge current 135 A 200 A
Charging curve U/I;CC/CV U/I;CC/CV
End-of-discharge voltage 72 VDC
72 VDC
Continuous discharge current 270 A (1C) 400 A (1C)
Peak discharge current 500 A (short term peak) 500 A (short term peak)
Operating Temperature -20 ℃ to +60 ℃ -20 ℃ to +60 ℃
Charging Temperature 0 ℃ to +60 ℃ 0 ℃ to +60 ℃
Dimension (W x H x D) 827 mm x 550 mm x 519 mm 827 mm x 550 mm x 519 mm
Weight, gross ca. 350 kg ca. 415 kg
Protection IP 65 IP 65
Transportation/ Abuse UN 38.3 UN 38.3
Short circuit protection Internal fuse 630A Internal fuse 630A
Temperature protection Integrated Integrated
Over/Under voltage & Overcurrent protection Integrated Integrated

1. State of Charge Display

Knowing exactly how much energy is left in a battery can be tricky. It doesn’t have to be. We provide every Power Traction system with it’s own display so you don’t have to guess anymore. And, if you don’t need the system, send it back to us for re-cycling and re-use.

2. Tracking

Information is power. Power to optimize your business and deliver better service. With Power Traction Tracking, you will always know where your equipment is located, how fast it is driving, the route it has followed during the day, the current state of charge… the list of information available to you is extensive. Ask us how Power Traction Tracking can improve your business performance.

3. Counterweights

All of our Products weigh a fraction of their lead-acid battery cousins. Less weight means your equipment drives further on a charge and experiences less wear and tear on tires, motors and chassis. In a nutshell, less weight reduces maintenance costs and prolongs the life of your equipment. Sometimes, however, our customers need the full drawbar pull of their equipment. We therefore offer a variety of counterweights to meet your drawbar pull and towing capacity needs. Our flexible solution allows you to take control and optimize the ballast in your fleet to balance best fleet economics with fleet load hauling requirements.

4. System Activator

The Power Traction family of products are active systems – Electronics constantly monitor the status of the battery. There are times, however, when the system might need to be stored for an extended period or shipped. Our System Activator will put the Power Traction to sleep allowing you warehouse the system for up to 12 months without charging.

Colibri Charger

Fast charging in all conditions with our Colibri Indoor & Outdoor Chargers.

Available as indoor or outdoor charger

Outstanding Reliability

Fast charging everywhere. Amazing heat and dust resistance

Incredible Performance

Colibri battery fully charged in under 2.5 hours

Fleet-Efficiency

Less time charging, more time operating. Optimise fleet utlisation.

INDOOR CHARGER

OUTDOOR CHARGER

Nominal Voltage 400VAC 3~ (385-415V) 400VAC 3~ (385-415V)
Maximum Current (@385V) 32,9A 32,9A
Maximum Current (@415V) 30,1A 30,1A
Recommended charge current 135 A 200 A
Frequency 50-60Hz 50-60Hz
Maximum active power 20,6kW 20,6kW
Maximum apparent power 21,6kVA 21,6kVA
Power factor 0,95 0,95
Voltage nominal 80V 80V
Maximum Current 200A 200A
Efficiency ~94% ~94%
Degree of protection IP21 IP55
Weight 40kg 100kg
Operating temperature (automatic derating) -20°C – 55°C -20°C – 55°C

1. Indoor

Space saving reliable indoor chargers. Easy to use, our indoor chargers provide otpimised fast charging for COLIBRI batteries.

2. Outdoor

Outdoor systems have it tough, rain, snow, heat, and cold. They have to take it all. Our outdoor systems have been proven on sunny automonous islands and snowy Bavarian farmlands in winter.

Get a free Offer now

SOME OF OUR INNOVATIONS
Our Lithium Batteries in Action

Port of Hamburg

High voltage traction system for automated guided vehicles



SEE MORE

John Deere

High voltage traction system for John Deere hybrid tractor



SEE MORE

Island of Pellworm

Storage systems for smart grid and autonomous energy research


SEE MORE
